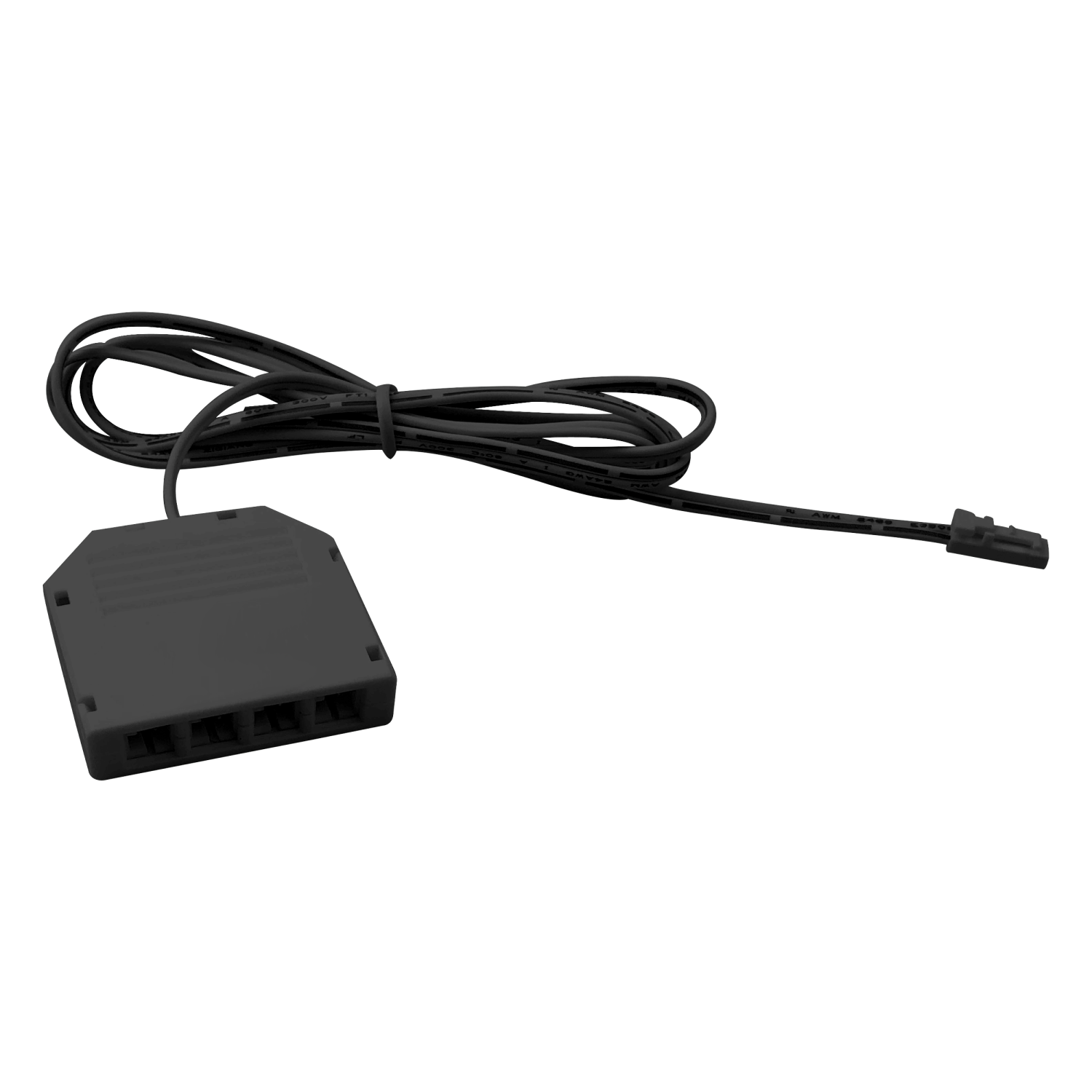

The 4 socket connector was designed to connect lamps in sets containing up to five lights working together. Thanks to this, one may create uniform and aesthetic lighting under cabinets or shelves, even with a large space requiring lighting. The compact construction and the cable 10 cm long facilitate the connector to be easily concealed, thus maintaining the aesthetics of the interior.
The product is made of durable materials that ensure long and safe use. The 2-core wire with a cross-section of 2x0,2 mm² guarantees stable connection. The rated voltage is 12V or 24V, which makes it compatible with a wide range of furniture lamps with a total power of 36W at 12V and 72W at 24V.
Cable insulation and IP20 rate provide protection against dust and dirt. The connector is suitable for use in dry rooms, not exposed to moisture. The device is easy to install. Black colour.
| General information: | |
|---|---|
| Number of cores: | 2 |
| Nominal cross section conductor [mm²]: | 0.2 |
| Length [m]: | 0.1 |
| Nominal current [A]: | 3 |
| Nominal voltage [V]: | 12/24 |
| Power [W]: | 36/72 |
| Colour outer sheath: | Czarny |
| Degree of protection (IP): | IP20 |
