Power cables
The connecting cable for under-cabinet lamps is a practical installation equipment intended for connecting under-cabinet LED lamps, both to each other and to the power supply. The cable is also an extension cord, which significantly facilitates the installation of the lighting system.

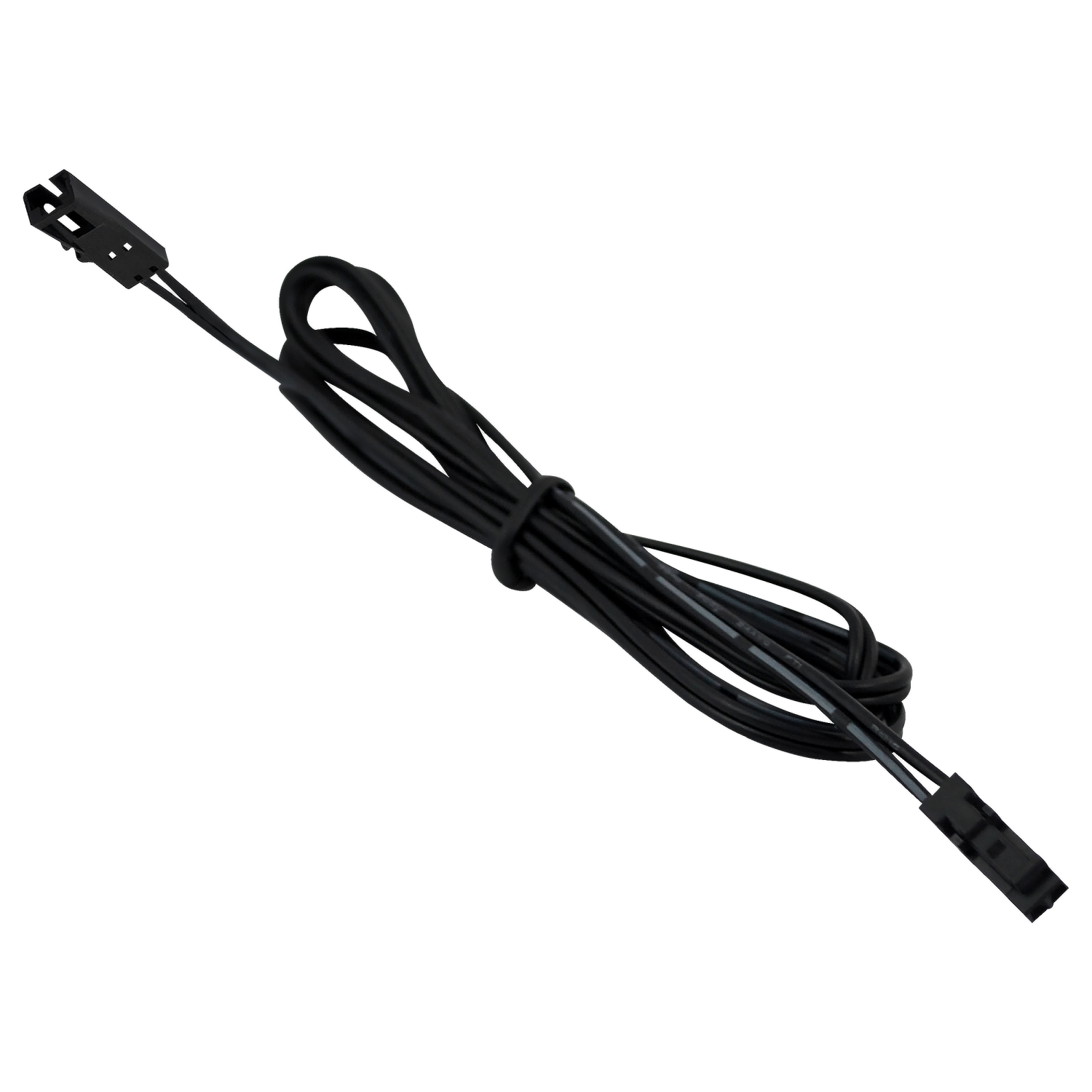

The presented cable is 1 m long. It has a mini LED plug on one side and on the other one a single LED socket. It has 2 cores with a cross-section of 0,2 mm². The outer shell material is made of polyvinyl chloride (PVC), which is temperature resistant up to 80°C.
The cable operates at 2A and 12/24V. The black coating of the cable makes it look aesthetic, and the IP20 rating provides basic protection in spaces not exposed to moisture.
With a small outer diameter of just 1.6 mm, the product is a discreet part of the lighting installation.
Available in two length variants - 1 m and 2 m.
| General information: | |
|---|---|
| Number of cores: | 2 |
| Nominal cross section conductor [mm²]: | 0.2 |
| Length [m]: | 1 |
| Material outer sheath: | Polichlorek winylu (PVC) |
| Temperature resistance [°C]: | 80 |
| Nominal current [A]: | 2 |
| Nominal voltage [V]: | 12/24 |
| Power [W]: | 24/36 |
| Colour outer sheath: | Czarny |
| Degree of protection (IP): | IP20 |
| Outer diameter approx [mm]: | 1.6 |
