Furniture luminaires
The under-cabinet lamp PIRAMIS LED is a perfect lighting solution combining functionality with modern, elegant design. It is excellent as an additional under-cabinet lighting or as a spotlight illuminating worktops during kitchen works. It is also suitable for illuminating furniture, display cases, shelves and cabinets in living rooms or bedrooms. Thanks to its modern housing it is a subtle and simultaneously useful element of the interior.
It has a 3,5W LED light source, which emits a luminous flux of 200lm and guarantees adequate illumination of the working space. The colour temperature of 4000K ensures neutral white light, which is pleasant and does not strain eyes. The wide beam angle facilitates even light dispersion.

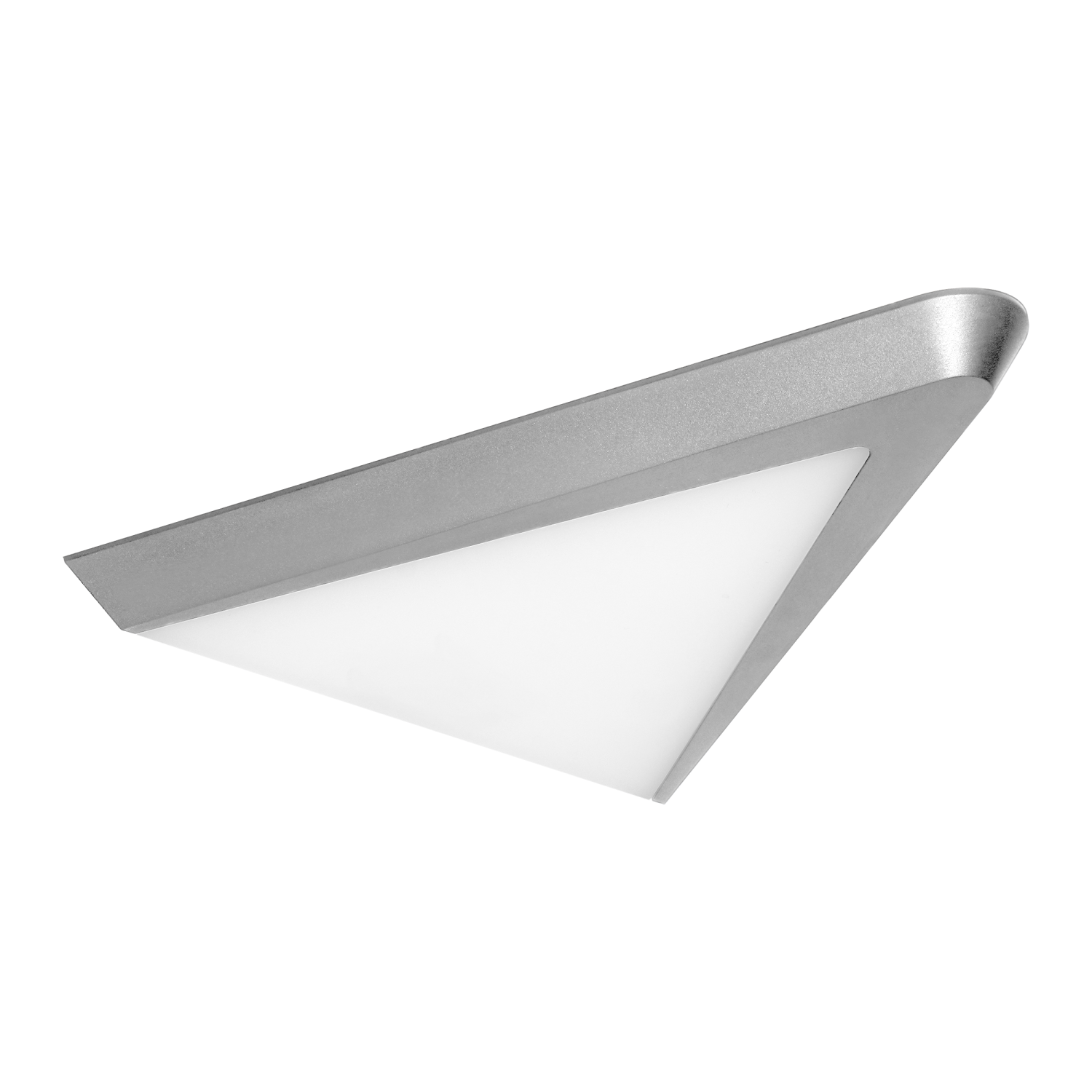

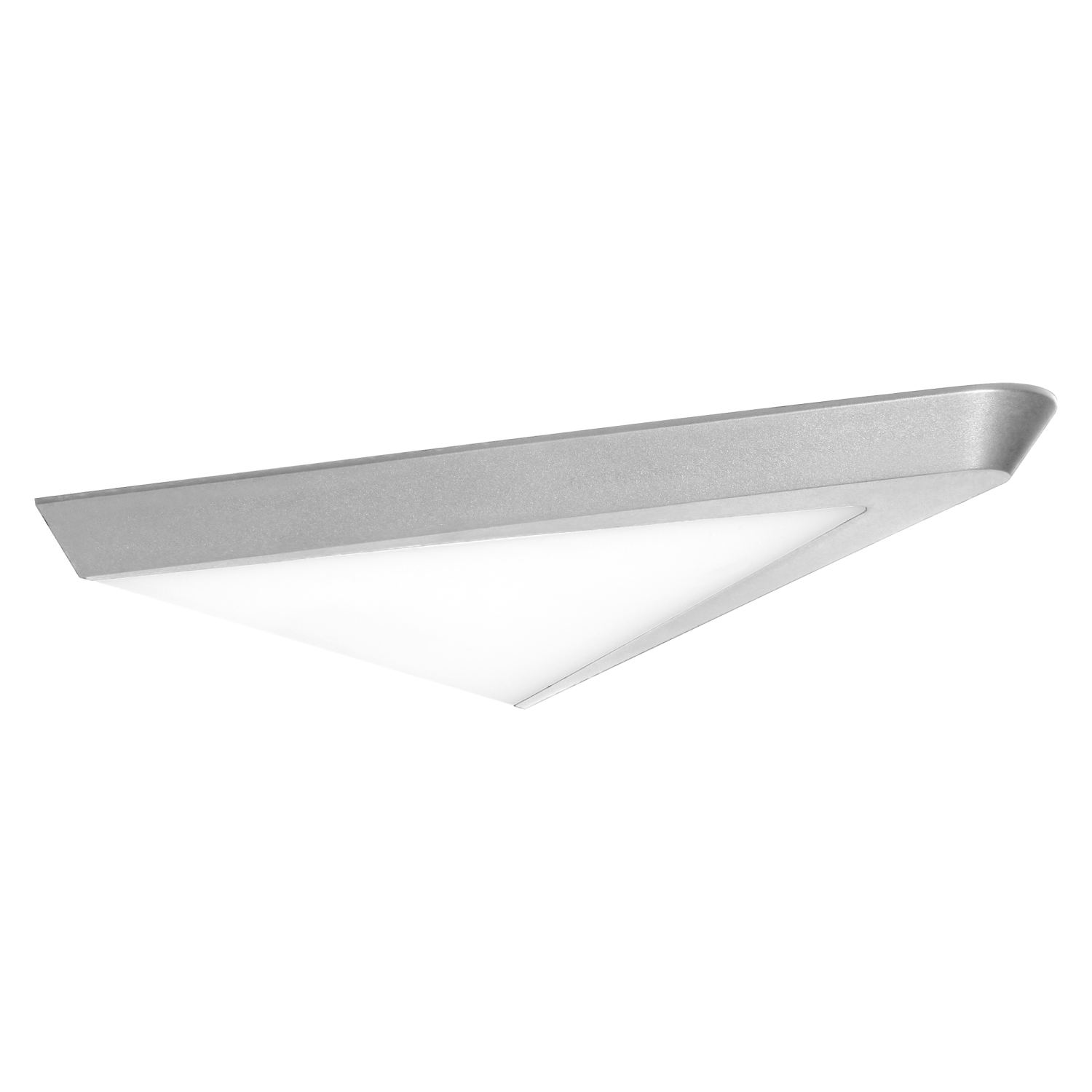

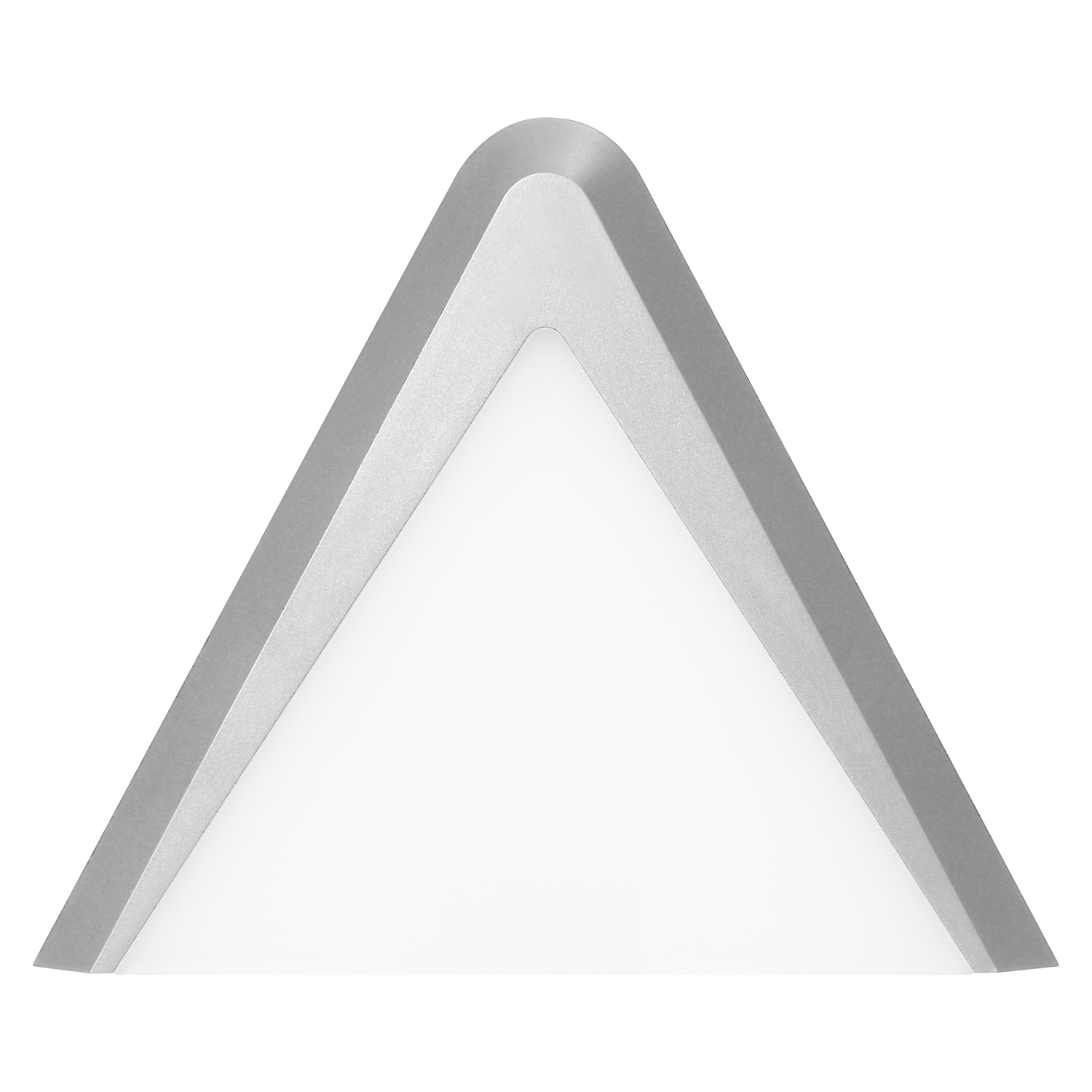

The PIRAMIS LED lamp has a modern and minimalistic design. Its flat triangular shape slightly protrudes from the cabinet surface and is almost unnoticeable. As it is available in two colour variants (grey and black), the lamp may be adjusted to different types of interiors. It is made of durable plastic with a matt satin finish.

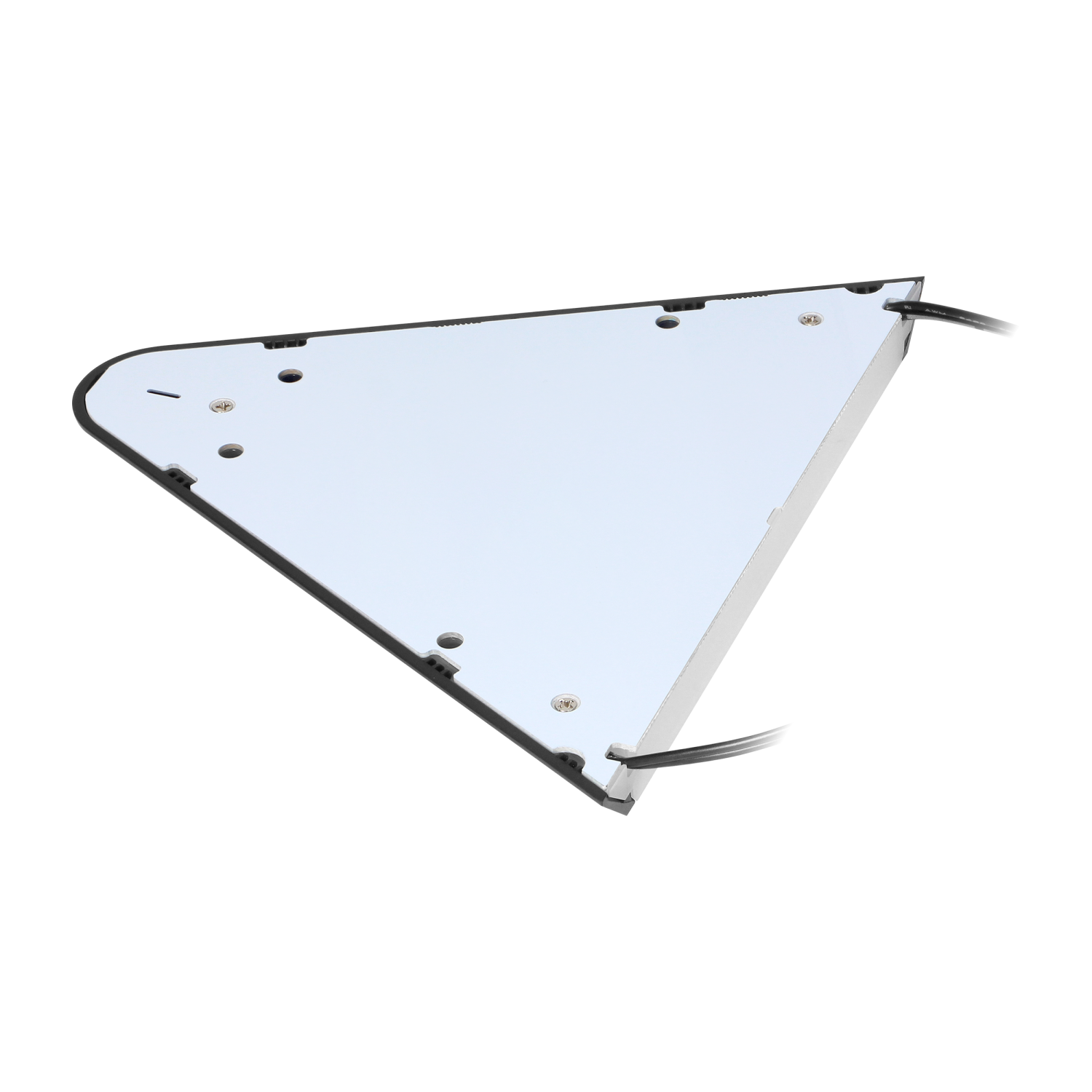

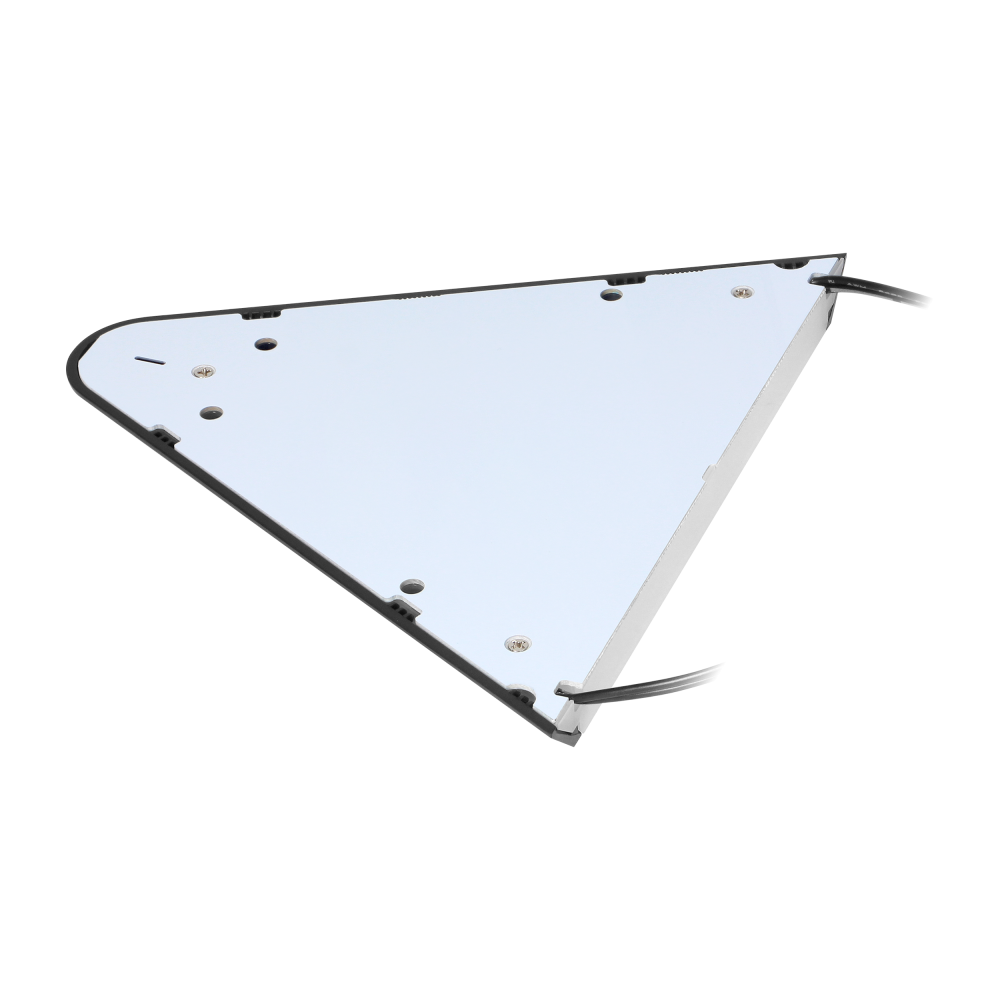

The installation of the lamp is extremely easy, thanks to surface mounting and the use of self-clamping connectors. The 12 V DC power supply is safe for the user and the pass-through wiring makes it easy to connect several lamps into one set (4 socket connector, AD-OM-6601CN, also available in our offer). The lamp is intended for use in dry rooms (IP20).
The lamp’s dimensions measure 124x10,5x150 mm. Grey colour.
Available also with a built-in touchless switch.
| General information: | |
|---|---|
| Nominal voltage [V]: | 12 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 3.5 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 200 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 54000 |
| Colour rendering index CRI: | 90-100 |
| Energy efficiency class of the built-in lamp: | F |
| Colour of light: | Neutralny biały |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK01 |
| Protection class: | III |
| Suitable for surface mounting: | tak |
| Material housing: | Tworzywo sztuczne |
| Colour housing: | Szary |
| Material cover: | Tworzywo sztuczne matowe/satynowe |
| Width [mm]: | 124 |
| Height/depth [mm]: | 10.5 |
| Length [mm]: | 150 |
| Voltage type: | DC |
| Exchangeable control gear: | nie |
| Type of wiring: | Z okablowaniem przelotowym |
| Connection type: | Wtykowe samozaciskowe |
