Outdoor wall lights

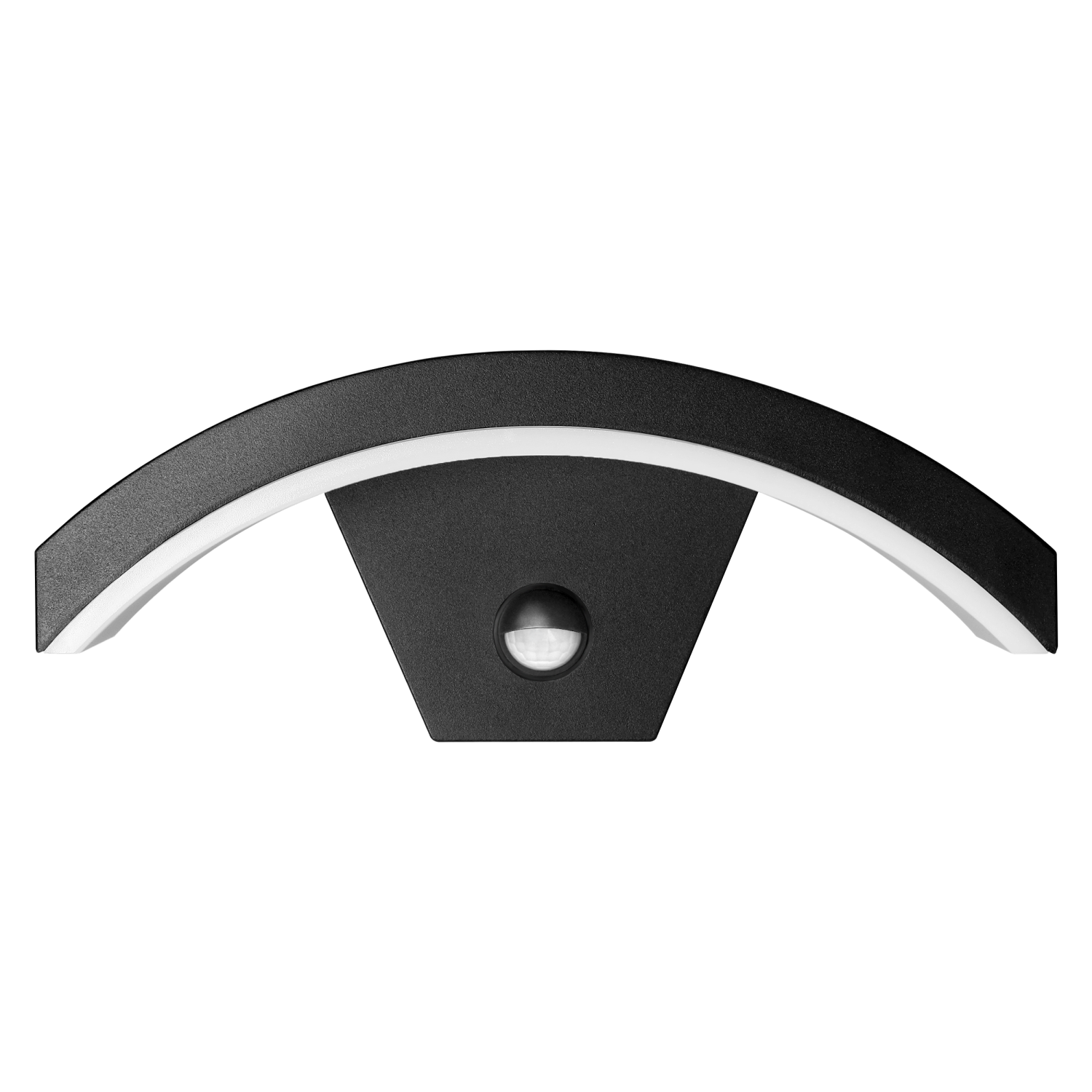

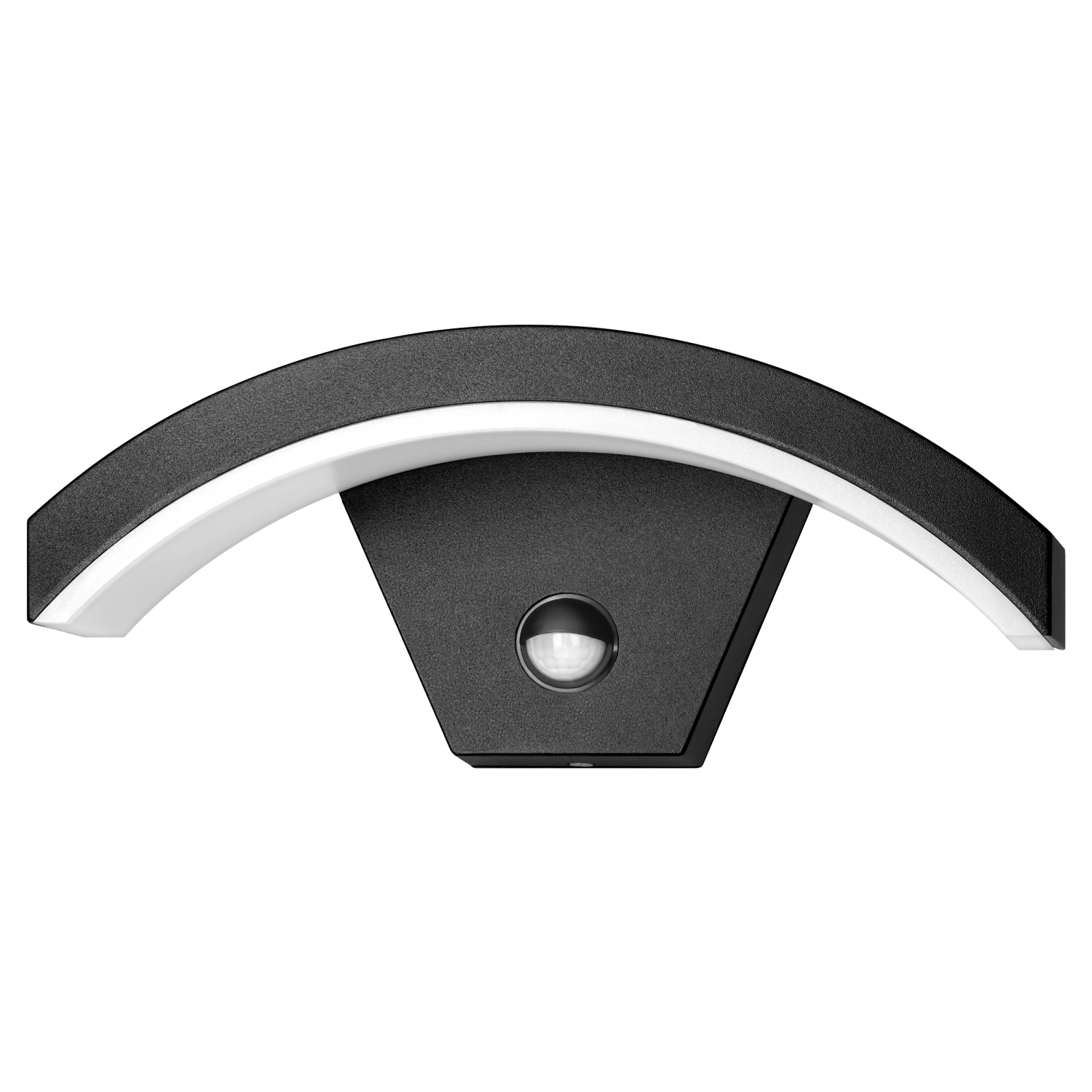

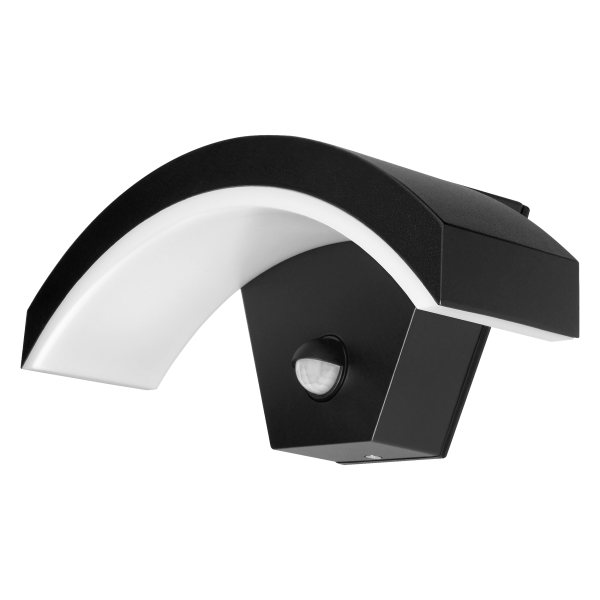

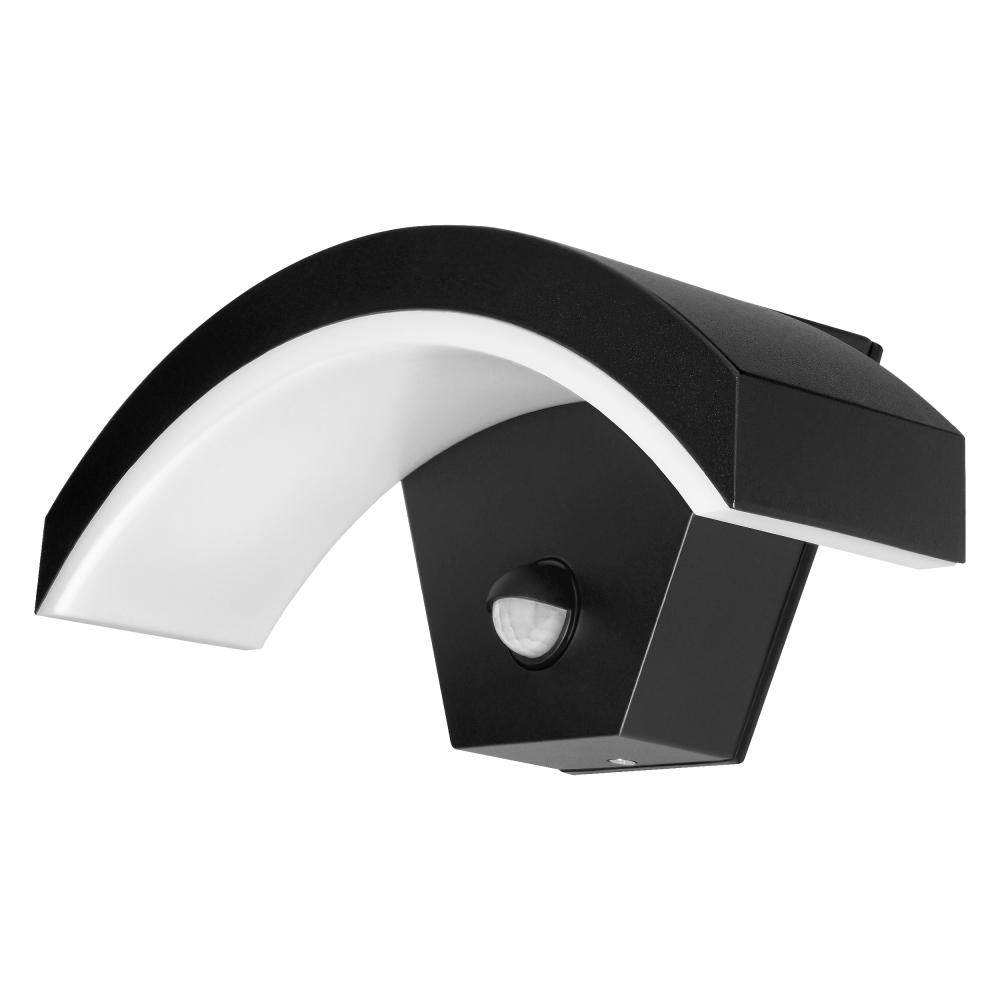

The PILEA LED garden luminaire combines functionality, durability and aesthetics, being perfect for outdoor use. Thanks to its semi-circular form and downward-facing light beam, the luminaire makes the surroundings look elegant and modern, creating a pleasant atmosphere in a garden, terrace or on a balcony.
The LED technology guarantees energy efficiency and a long service life. The 9W light source generates a luminous flux of 700lm providing bright and efficient illumination. The wide beam angle allows a large area to be illuminated evenly. PILEA LED is supplied with 230V AC.
The lamp emits pleasant neutral light colour of 4000K, perfect for illuminating area around the property, such as driveways or entrances. The IP54 rate provides effective protection against dust and water and the impact protection rate IK08 further protects the lamp from external damage.

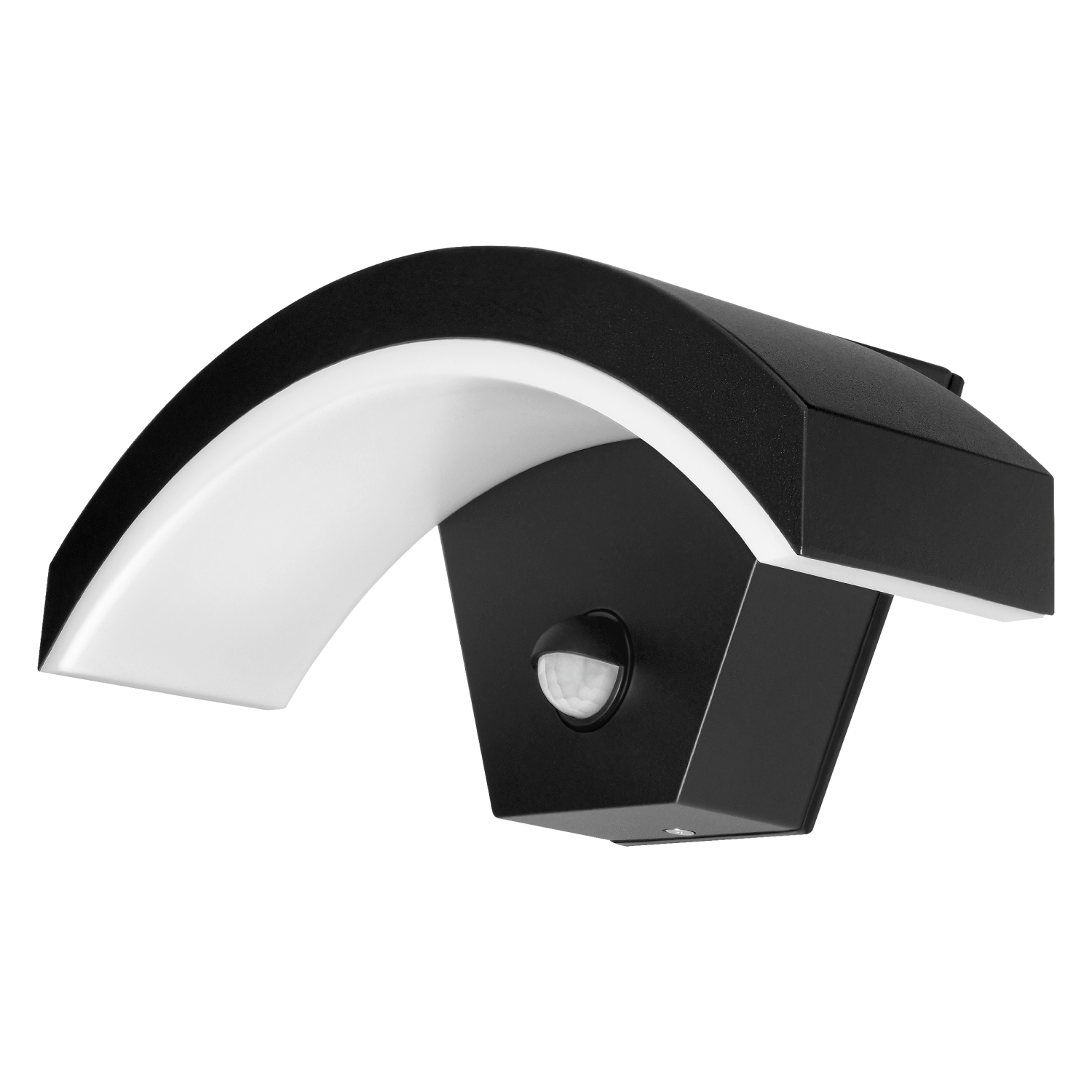

The presented PILEA LED has built-in motion and light sensor, which increases the safety of the household members. The sensor automatically switches on only when it detects movement in its surroundings. The detection range is 5 m. Additionally, the possibility to adjust the light and lighting time helps to set the sensor according to the user's preferences. The light control range is 5-2000 LUX, while the 10s±5s time is 4min±1min.

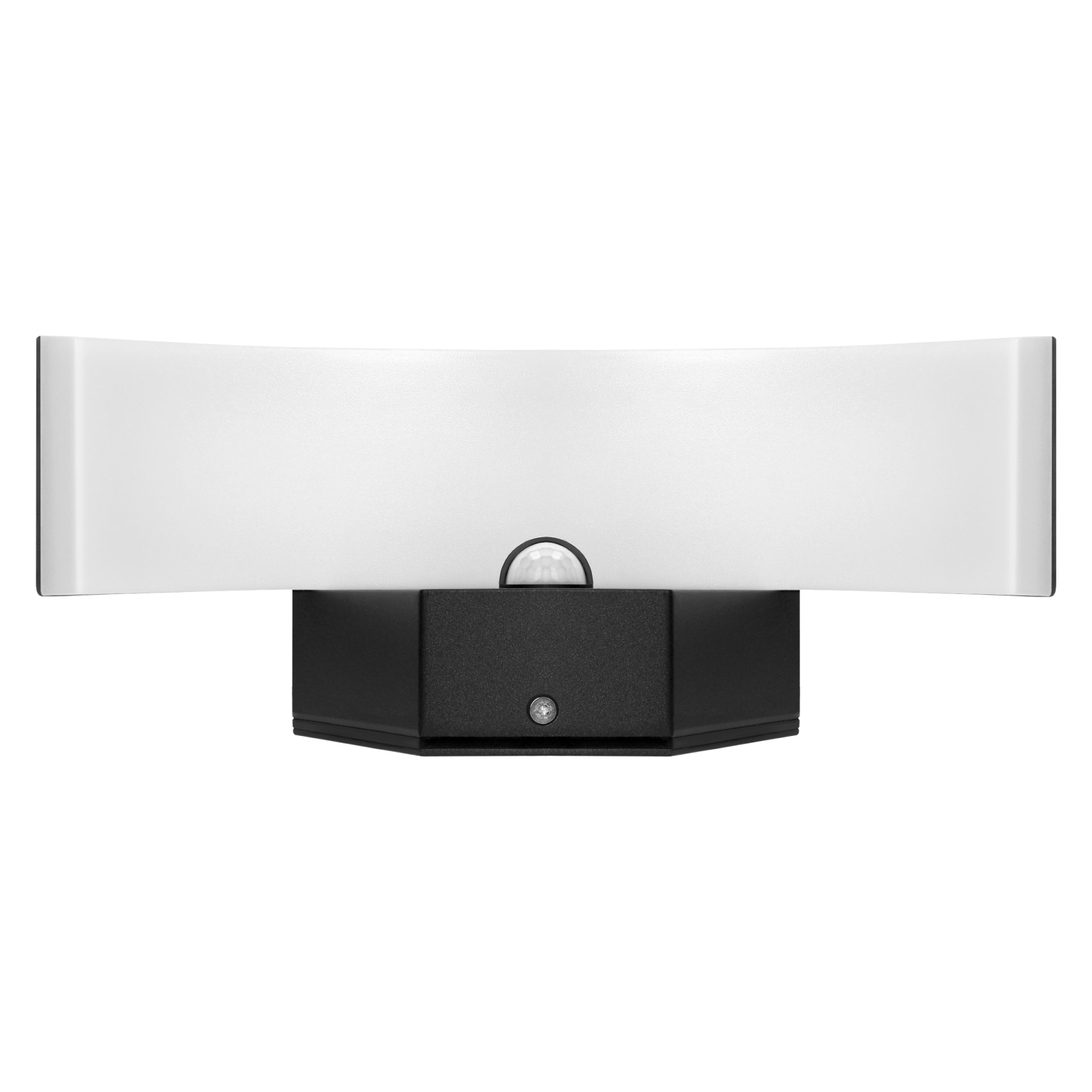

The PILEA LED fixture was made of high-quality materials. The aluminium housing provides durability, hence also long and reliable service life. The lampshade made of opalescent plastic diffuses the light evenly.

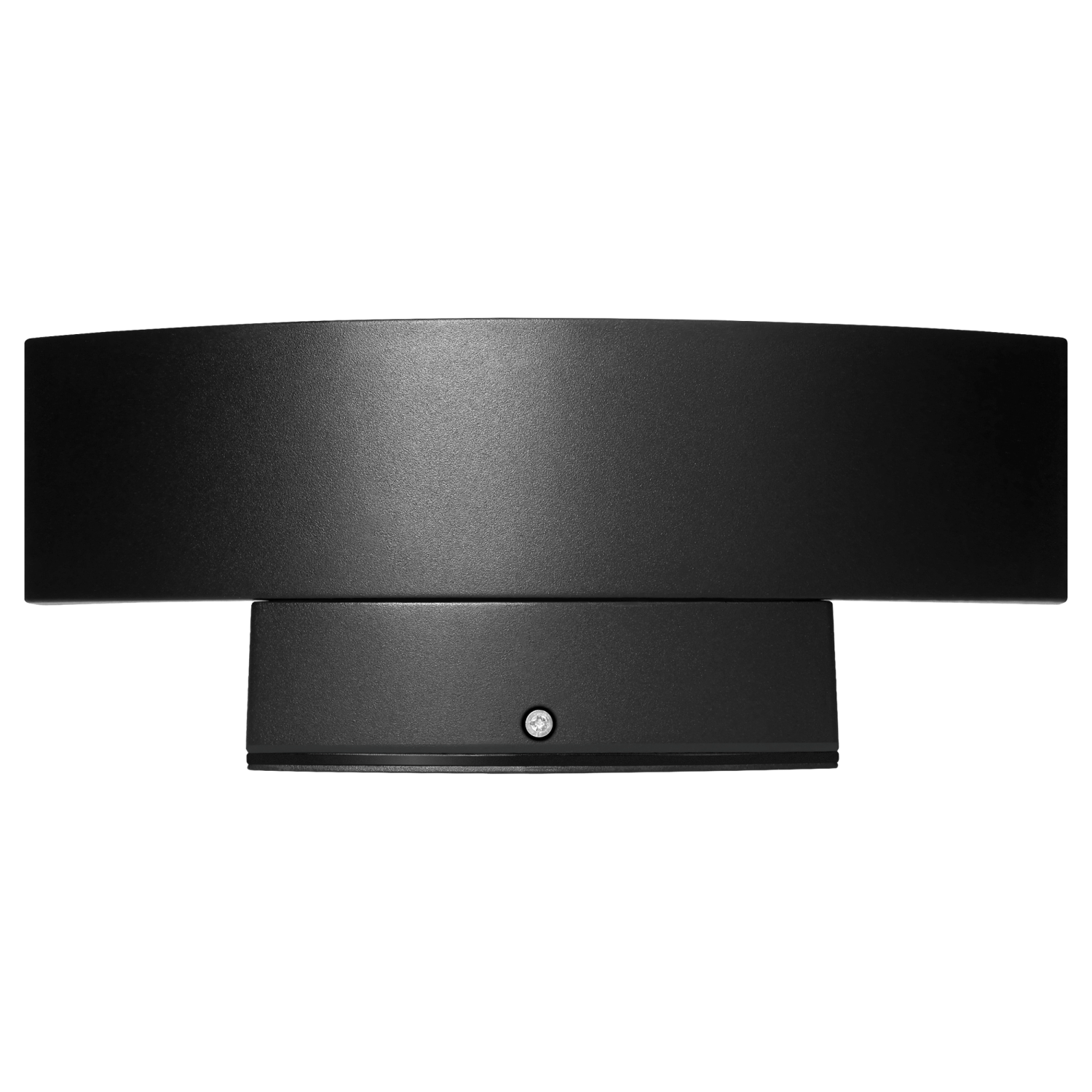

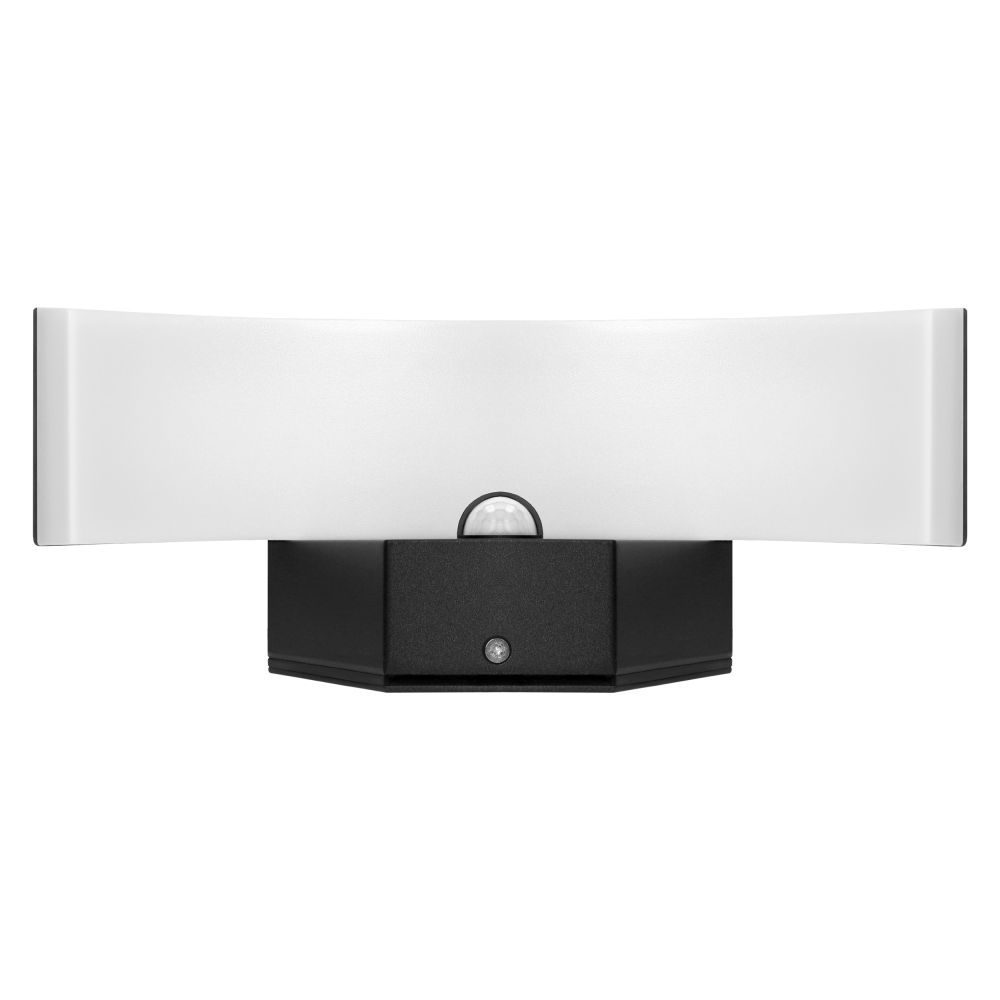

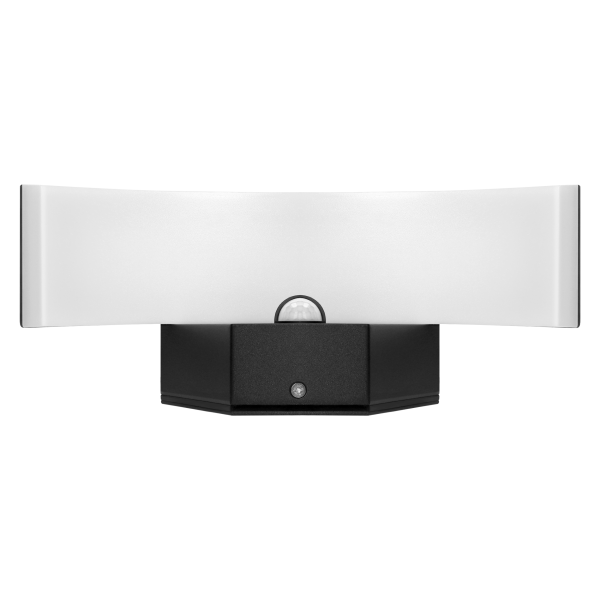

The matt black housing combined with the white opalescent lampshade blends harmoniously into a variety of outdoor arrangements.

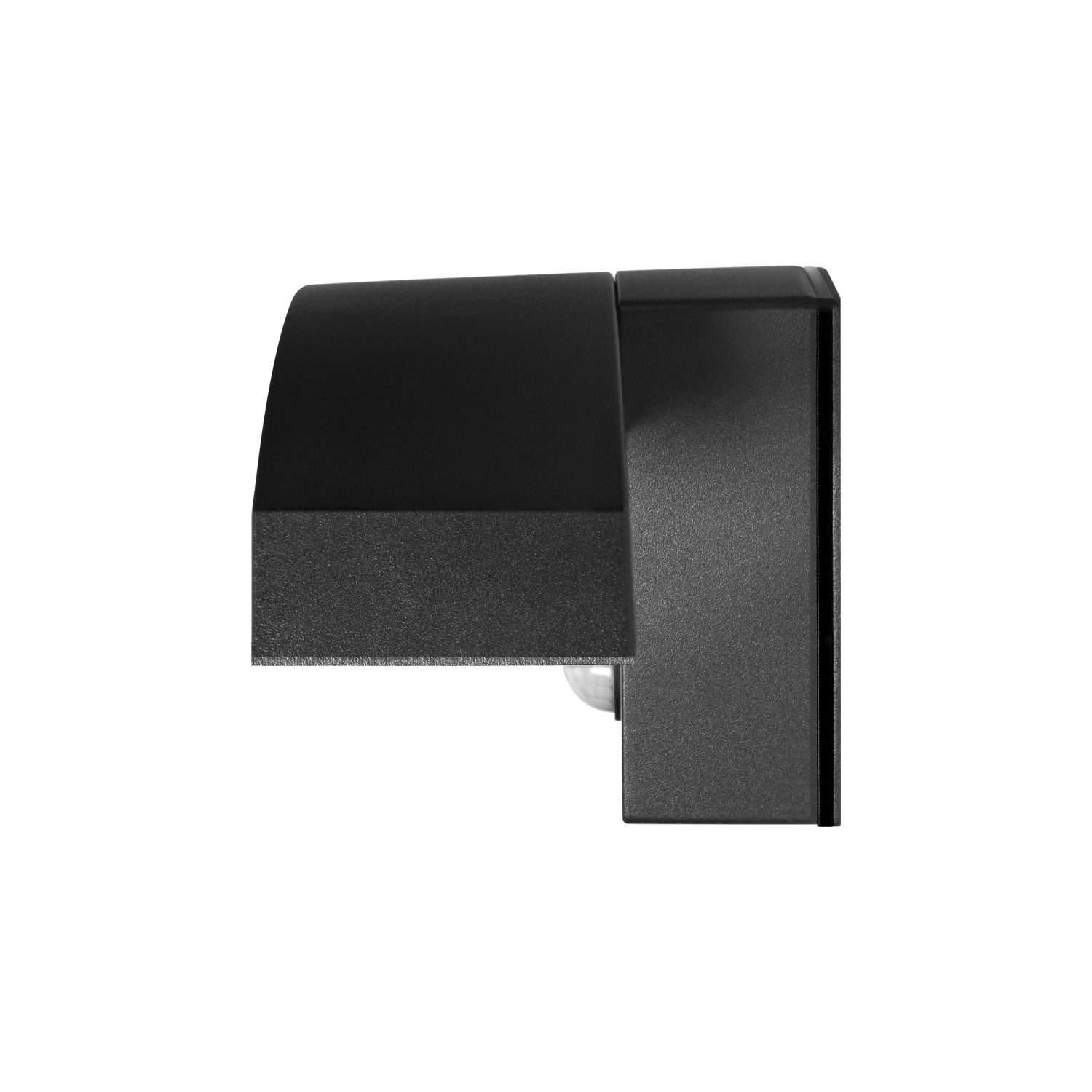

The dimensions of the lighting fixture measure 274x112x116mm.
Available also without motion sensor.
| General information: | |
|---|---|
| Nominal voltage [V]: | 230 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 9 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 700 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 20000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | D |
| Colour of light: | Neutralny biały |
| Degree of protection (IP): | IP54 |
| Impact strength: | IK08 |
| Protection class: | I |
| Type of luminaire: | Oprawa elewacyjna |
| Material housing: | Aluminium |
| Colour housing: | Czarny |
| Material cover: | Tworzywo sztuczne opalizowane |
| With light sensor: | tak |
| With movement sensor: | tak |
| Detection range [m]: | 5 |
| Adjustable daylight sensor : | tak |
| LUX light adjustment range: | 5-2000 lux |
| Adjustable time setting : | tak |
| TIME adjustment range: | 10s±5s - 4min±1min |
| The minimum distance from the illuminated object [m]: | 0.5 |
| Width [mm]: | 274 |
| Height/depth [mm]: | 112 |
| Length [mm]: | 116 |
| Number of switching cycles: | 15000 |
| Voltage type: | AC |
| Exchangeable control gear: | nie |
