LED stair luminaires

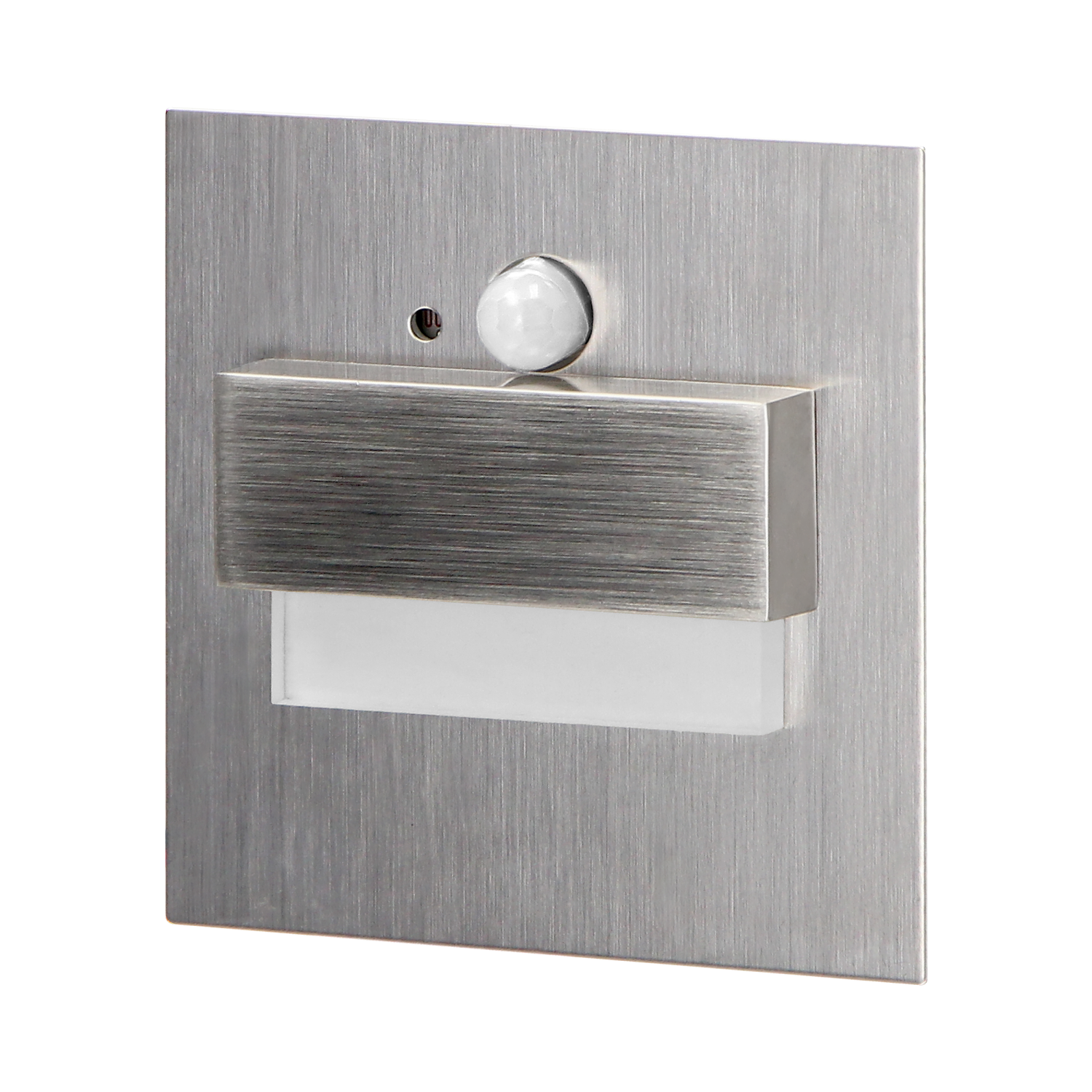

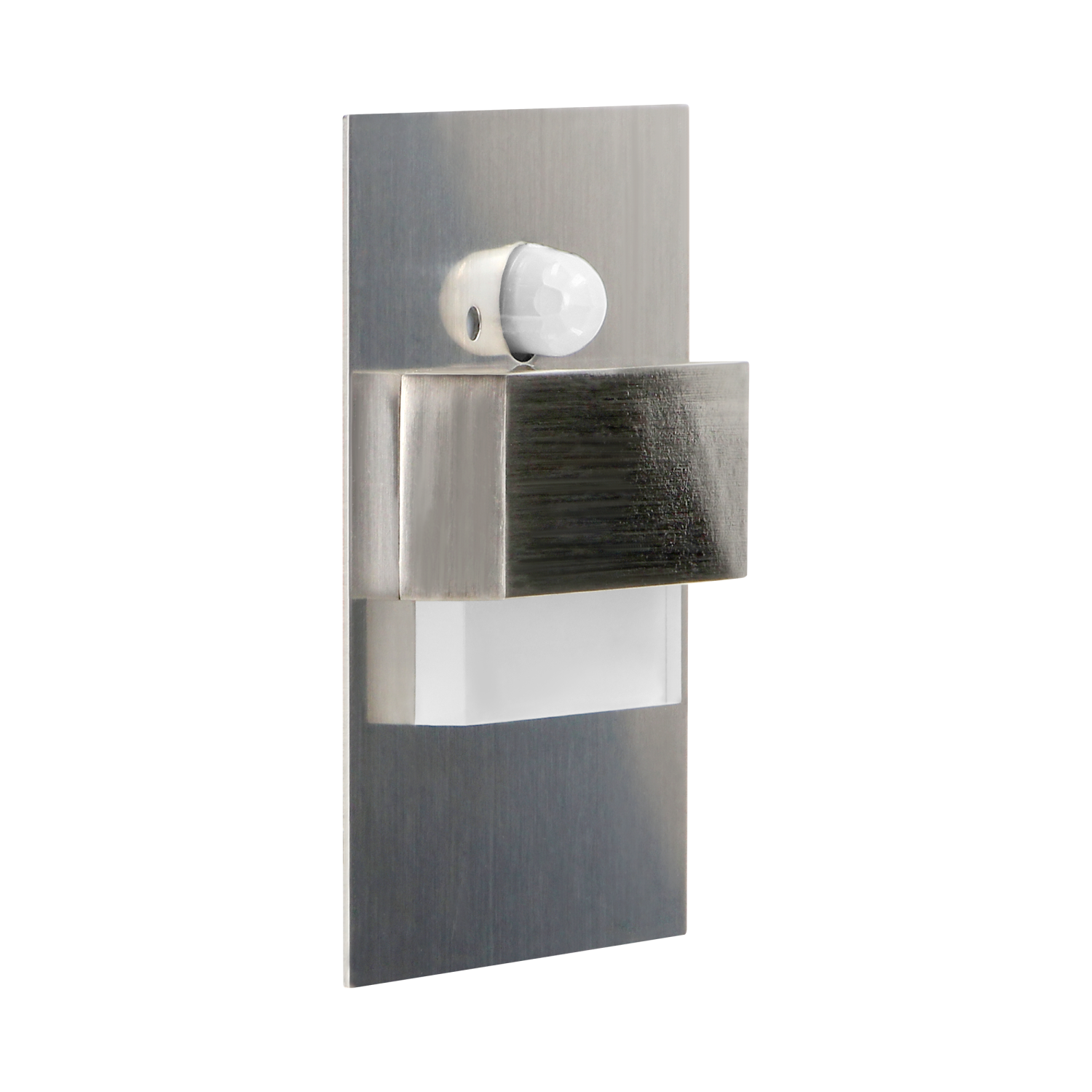

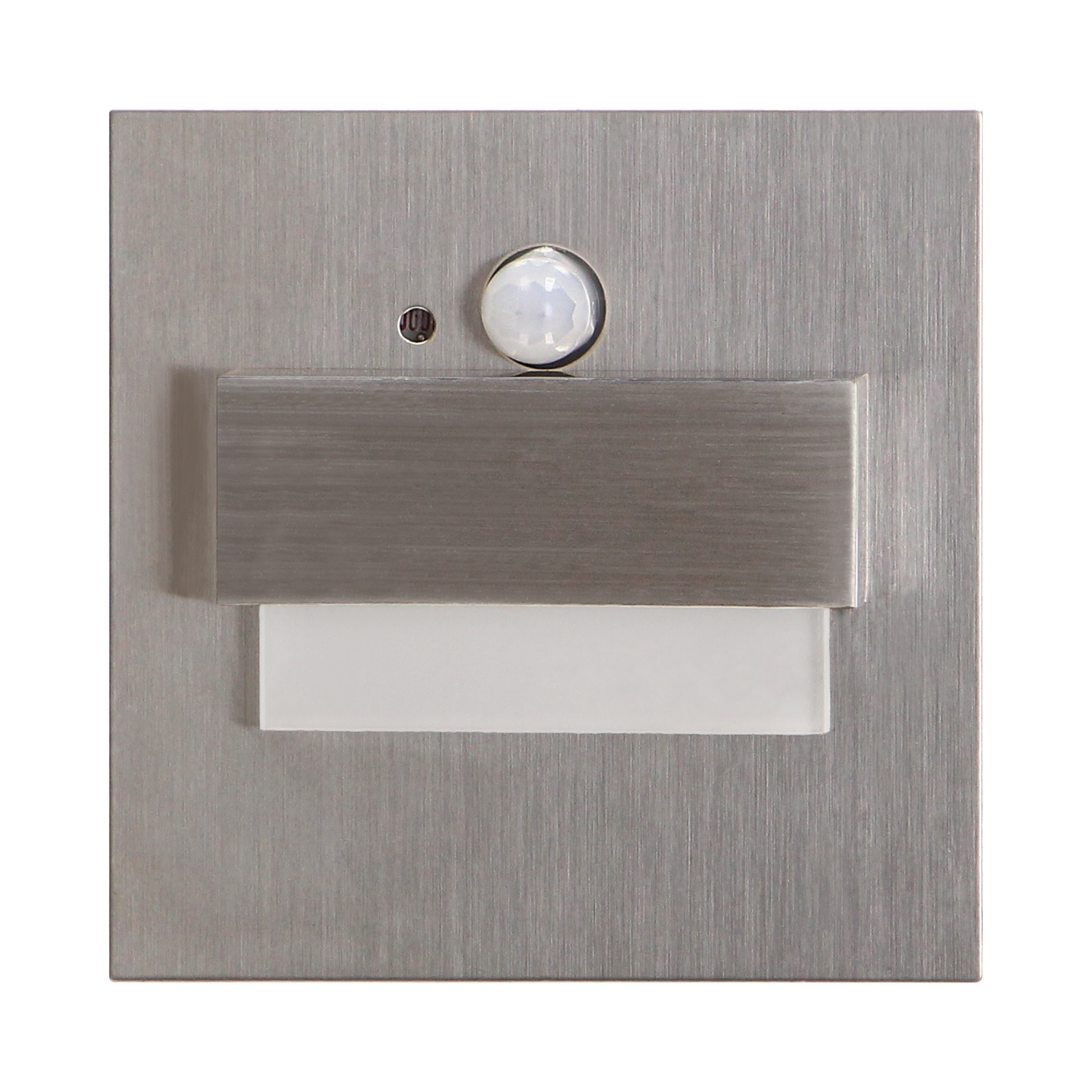

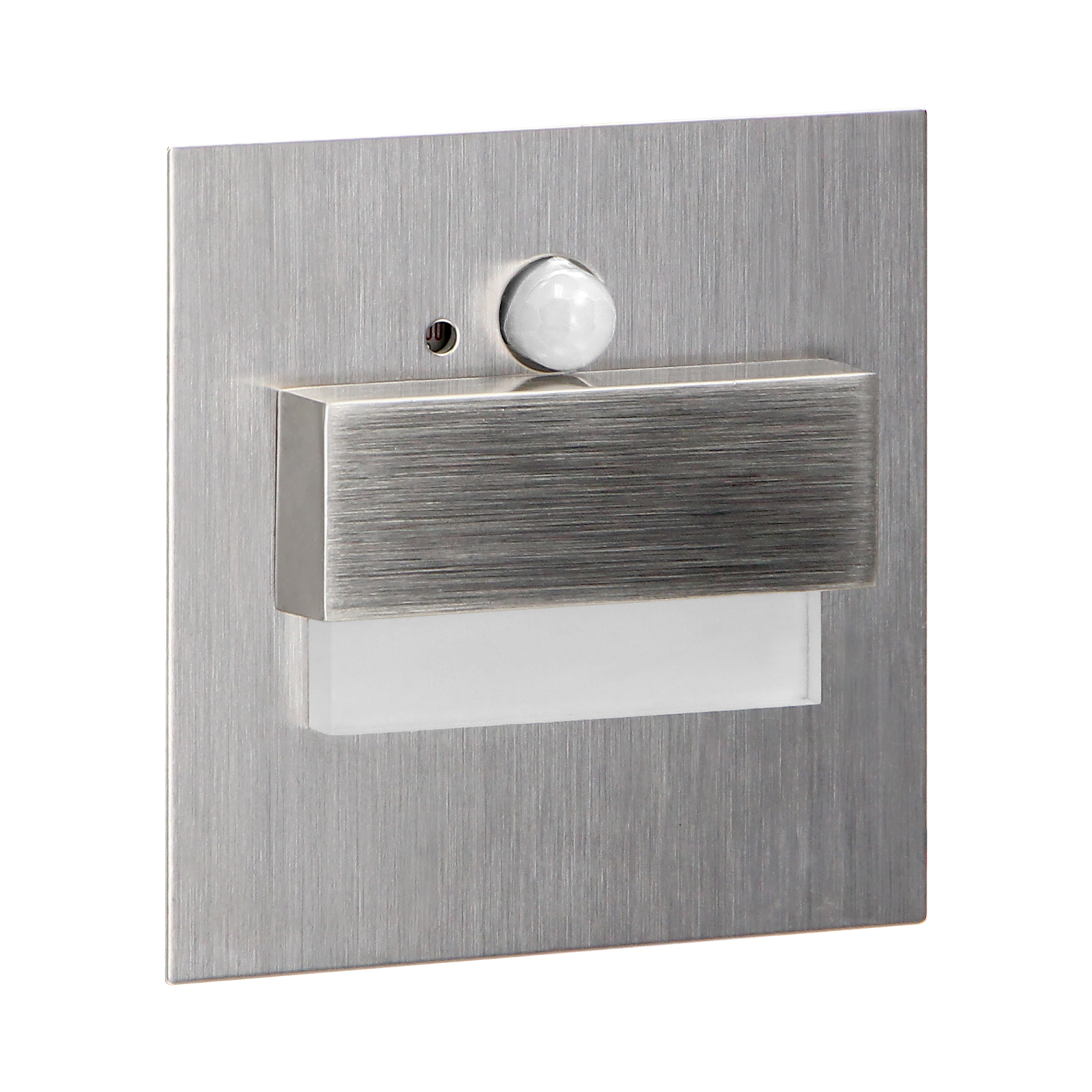

TRACO LED NEW step light designed to provide decorative lighting for stairs, corridors, walls, facades or passageways inside rooms. The original design and high-quality finishing in stainless steel, combined with innovative LED technology, make the fixture suitable for both classic and modern interiors. In addition, the luminaire has been equipped with a PIR motion sensor and a twilight sensor, thanks to which (depending on the settings) the step light will only work when it detects movement or when ambient light is insufficient. The lamp emits light the temperature of which is 3000K. This kind of lighting is suitable for home rooms, because its color is warm and pleasant. Color - satin.
| General information: | |
|---|---|
| Place of application: | Inside |
| Possibility of cooperation with a dimmer: | No |
| Durability L70/B50: | 20000 h |

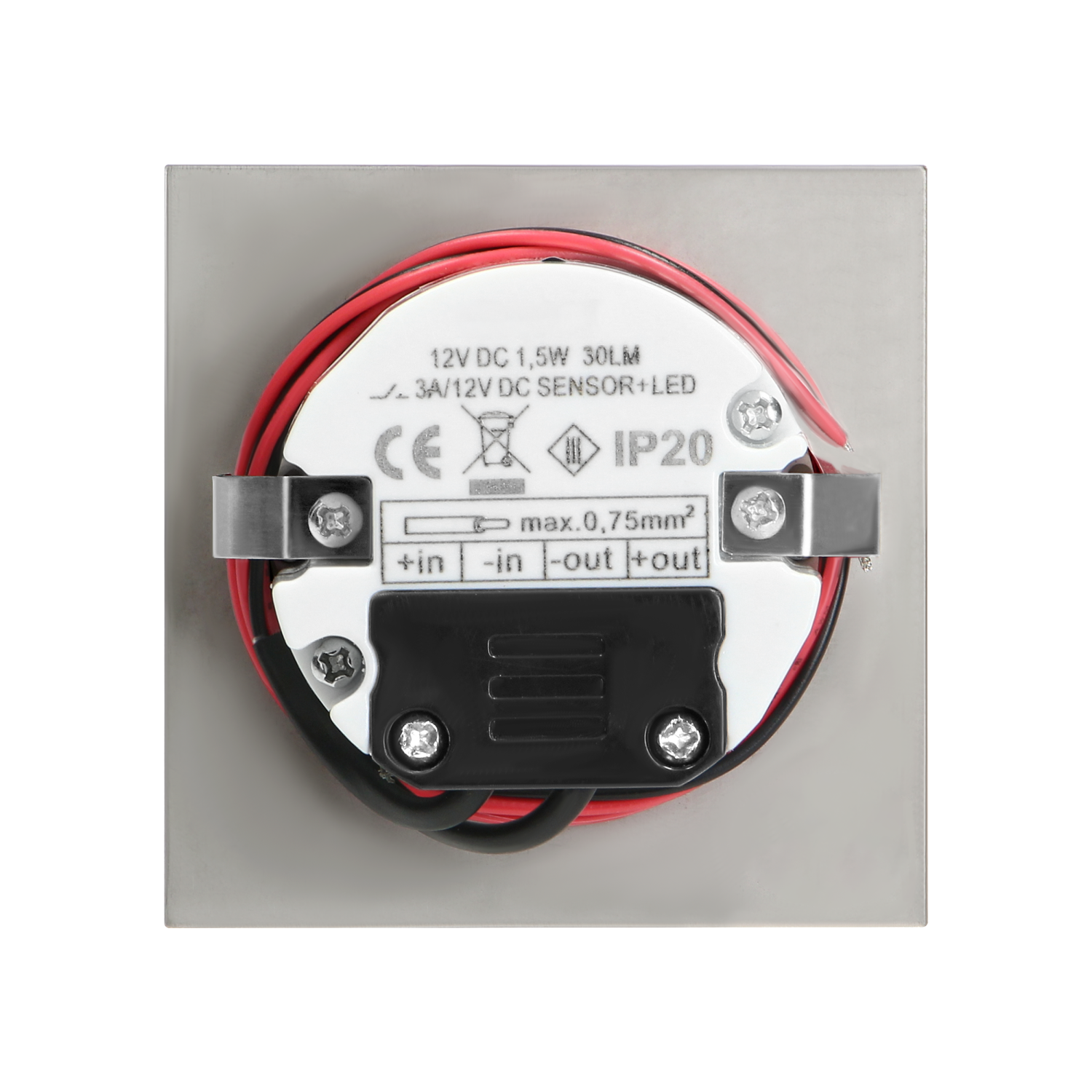

| Connection type: | Free cable ends |
| The minimum distance from the illuminated object: | 0,5 m |
| Luminous flux: | 30 lm |
| Rated power: | 1,5 W |
| Light source: | LED SMD |
| Degree of protection (IP): | 20 |
| Colour temperature: | 3000 |
| Nominal voltage: | 12V DC |
| Ambient temperature range to which the product may be exposed: | - 30 ~ 45 °C |
| Colour: | satin |
| Installation: | dopuszkowy - brak tłumaczenia |
| Dimensions - depth: | 45 mm |
| Dimensions - width: | 75 mm |
| Dimensions - height: | 75 mm |
| Other features: | PIR version - can manage max. 8 staircase luminaire in basic version. |
| Colour rendering index CRI: | >80 |
| Weight: | 43 g |
| Material housing: | Steel plate |
| Detection angle: | 120° |
| Material of the lampshade: | Acrylic glass |
| Control of the motion sensor: | No |
| Number of on / off cycles: | 10000 |
| Protection class against electric shock: | III |
| Dimensions of the mounting hole: | 60 mm |
| Type of sensor: | PIR |
| Detection range: | 2-3 m |
| Daylight sensor adjustment range (LUX): | <0-25lux |
| Lighting time adjustment range (TIME): | 3-45s |
