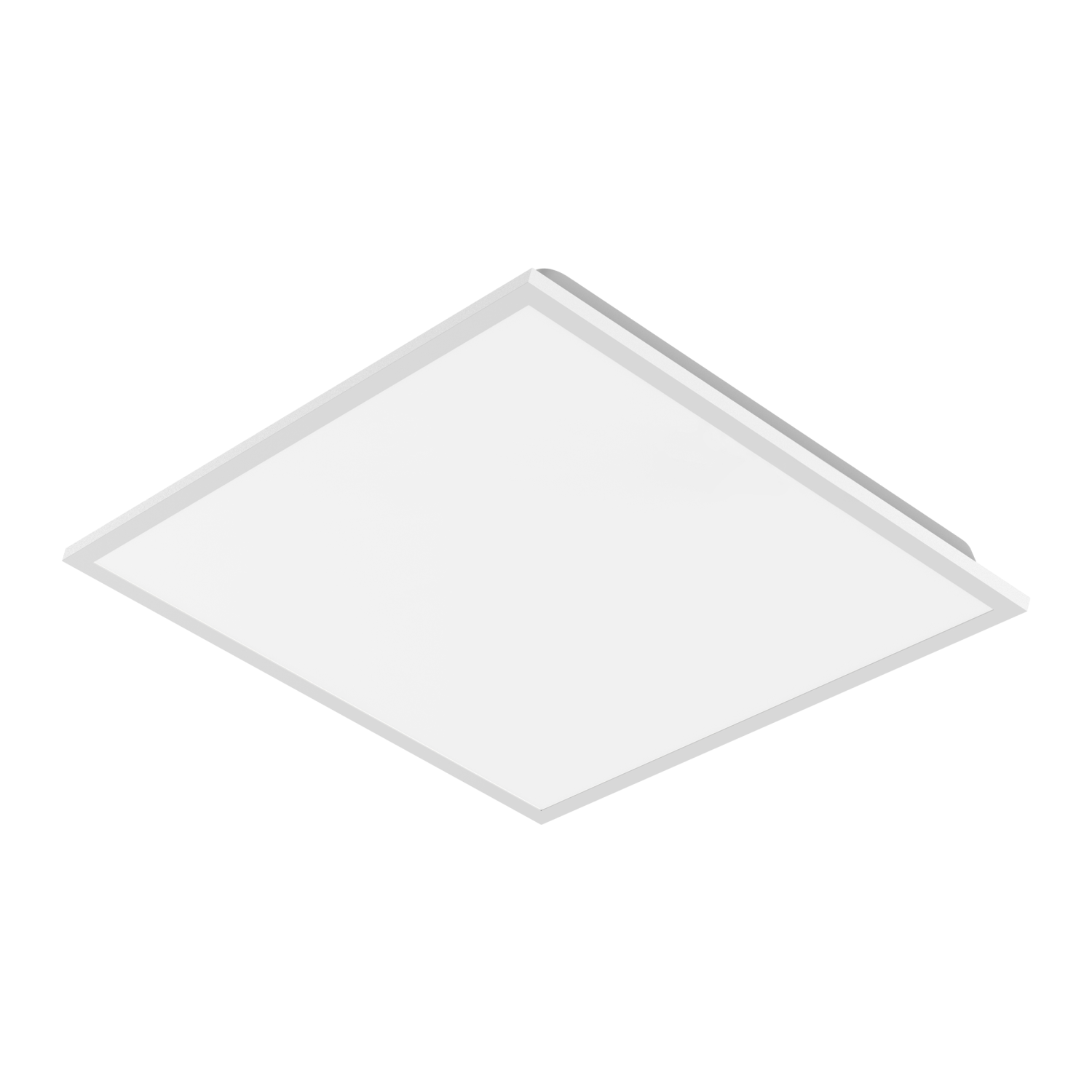

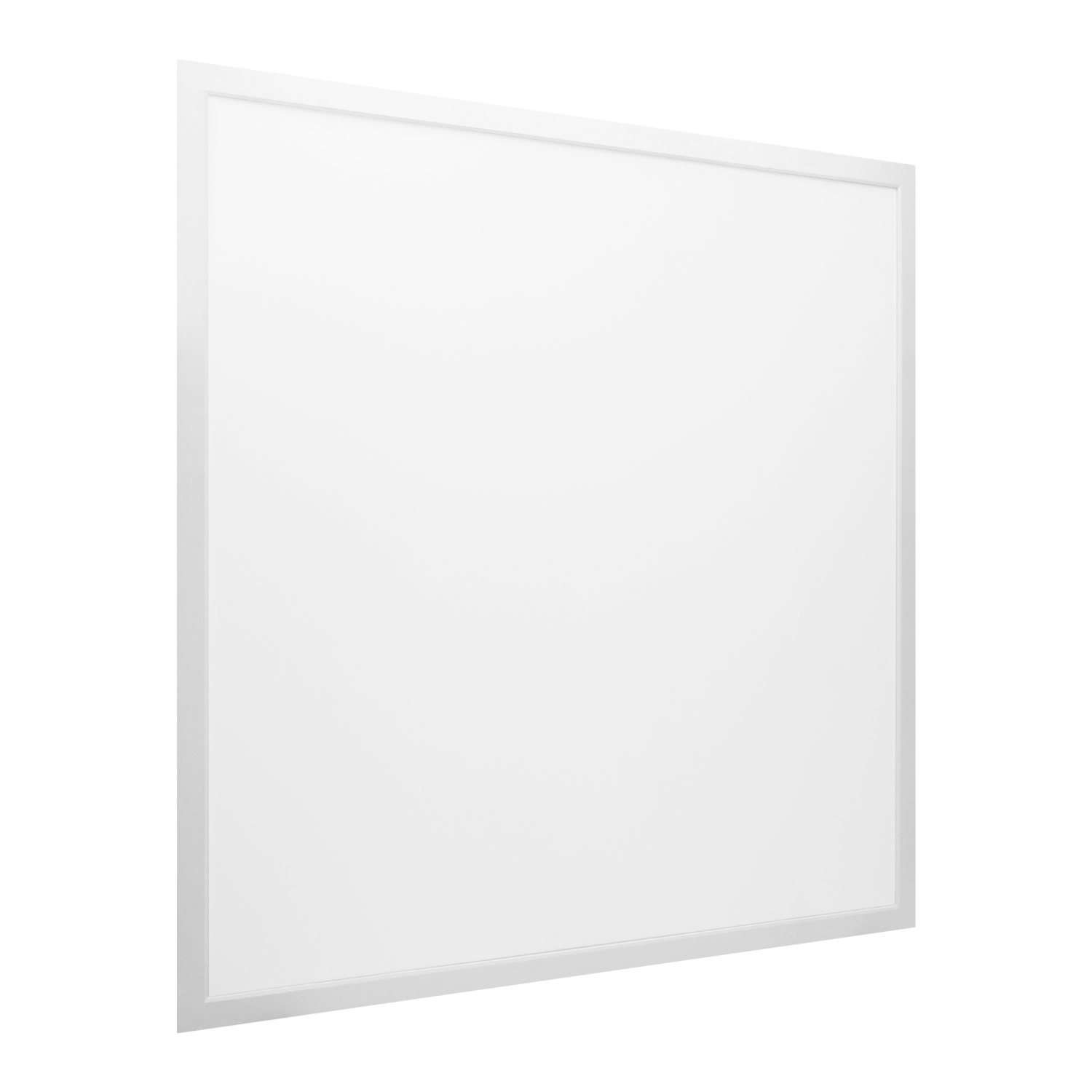

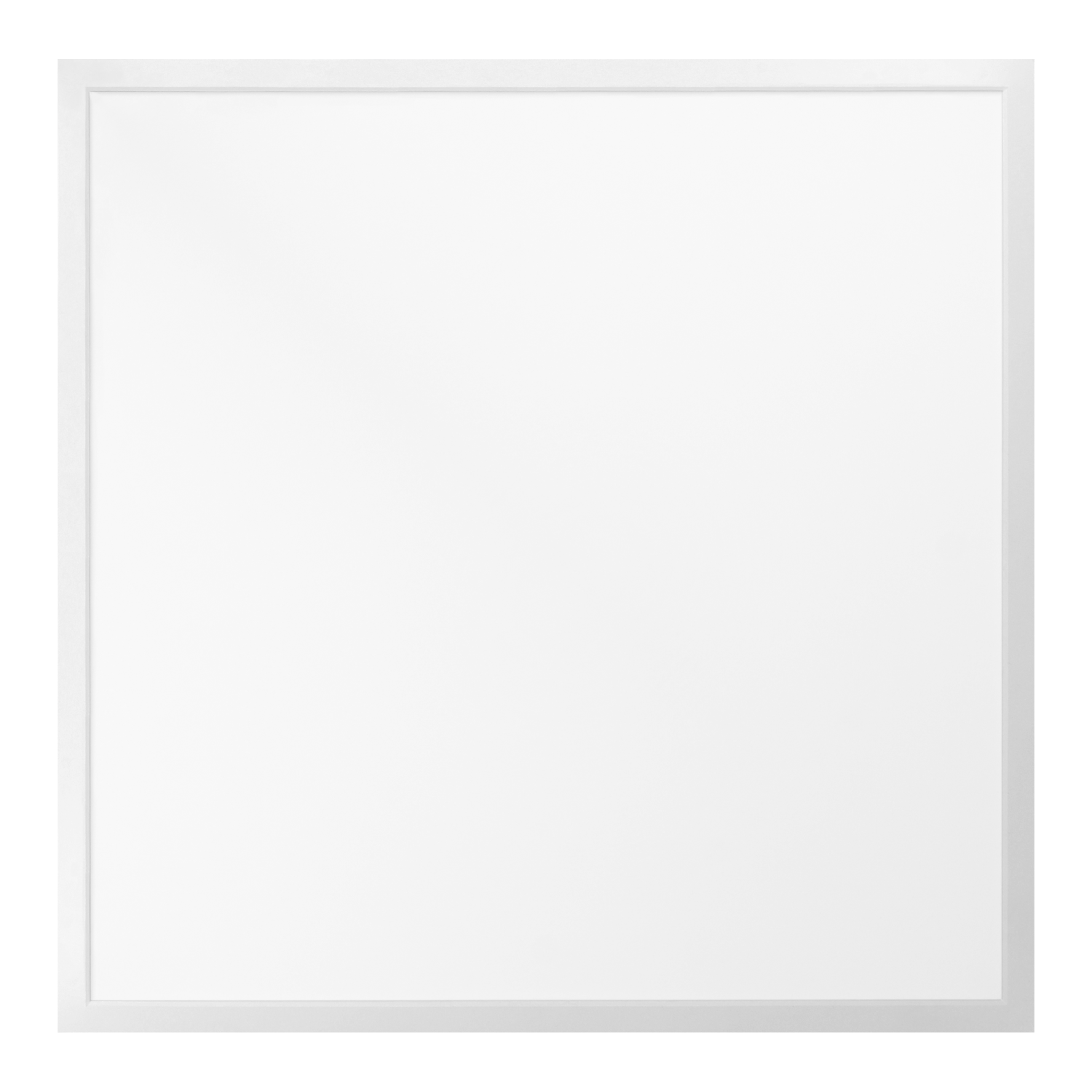

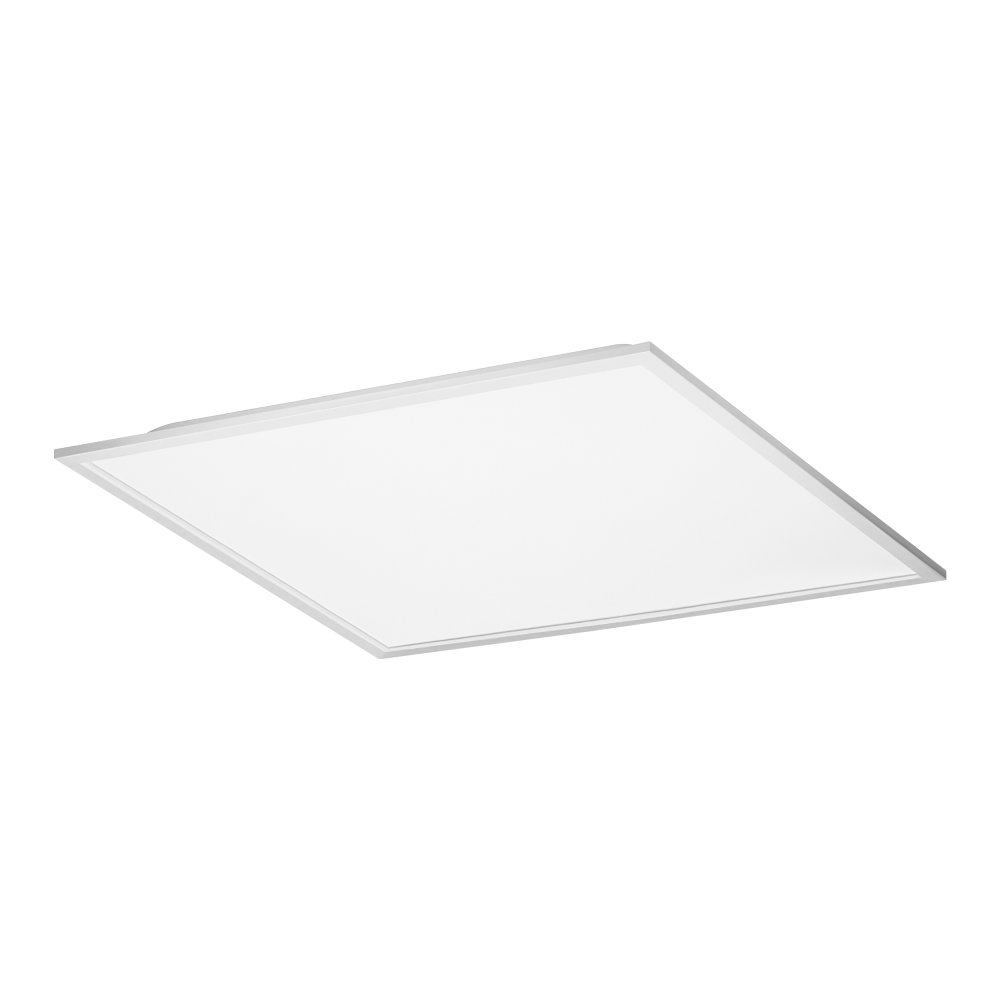

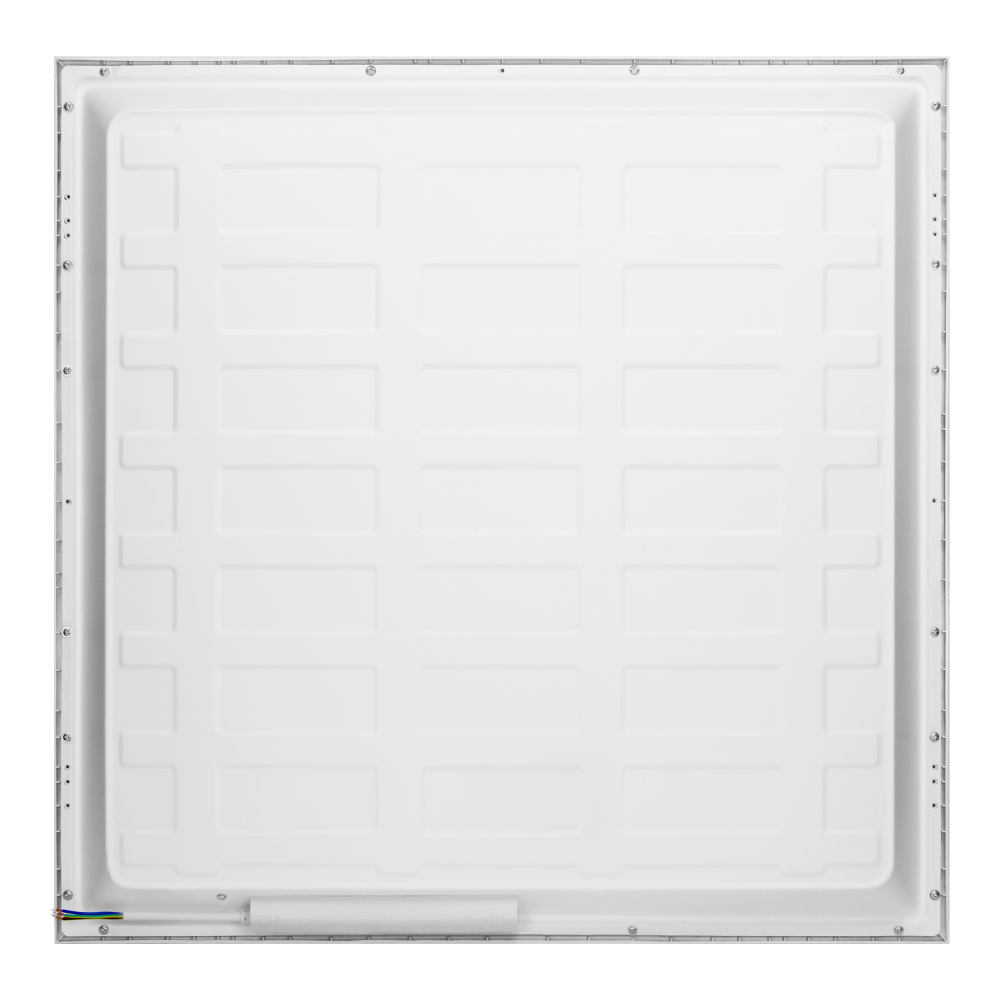

CASPER LED ceiling panel is a modern backlit lighting solution featuring universal look and versatile installation methods. Thanks to its classic and simple design, it is perfect for both domestic and commercial spaces.
CASPER LED is powered at 230V and uses a non-replaceable 40W LED light source. It offers a large lighting area, providing even and effective illumination of the space. A luminous flux of 4000lm and a neutral white light colour of 4000K create comfortable working environment. Thanks to its wide beam angle, the panel effectively replaces traditional raster luminaires, providing a modern look and energy efficiency.

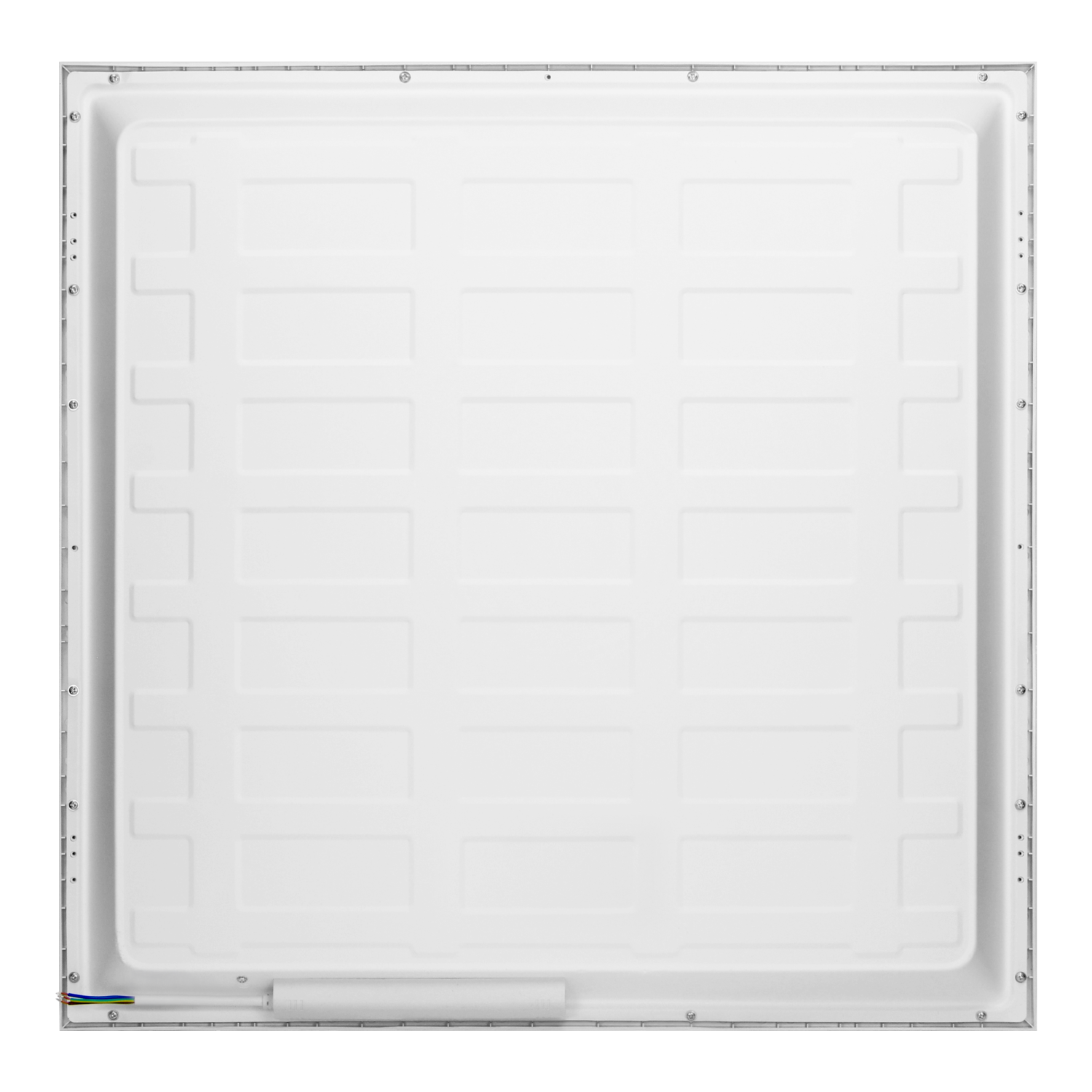

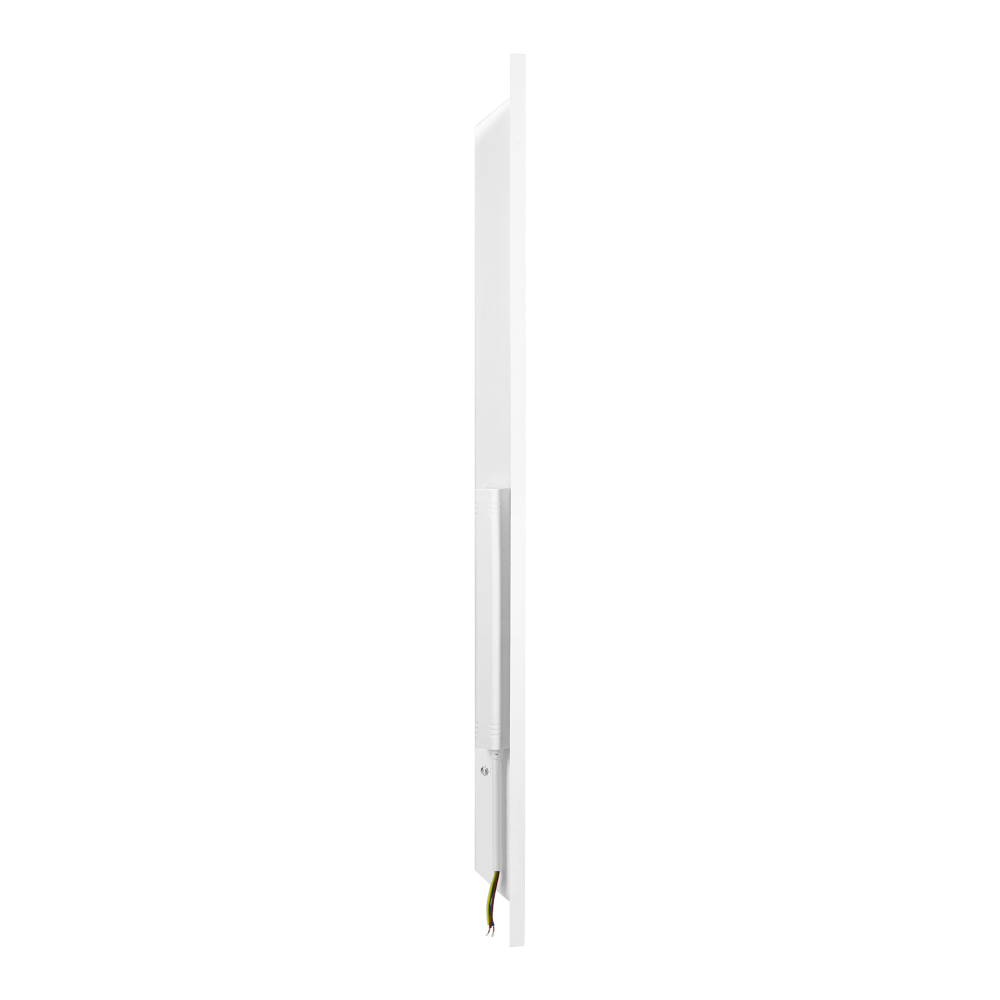

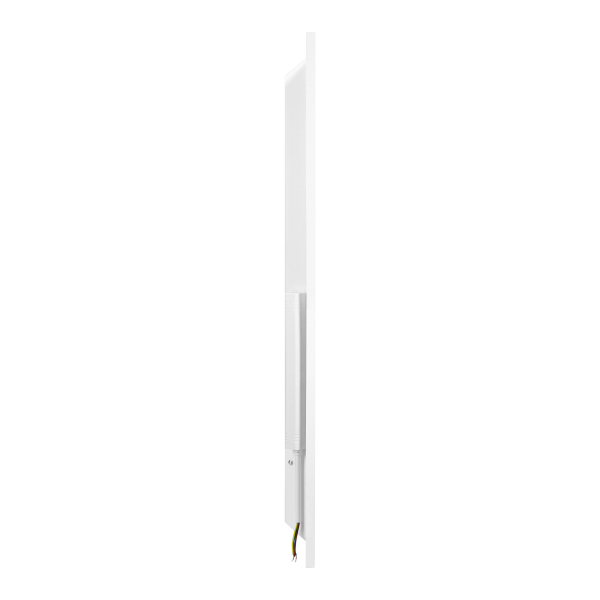

The panel may be built into a suspended ceiling, it may be surface mounted using a dedicated frame (not included) or suspended from cables (not included). The housing made of strong white aluminium and the plastic lamp shade guarantee aesthetics and durability. The dimensions measure 595x595x33 mm.
| General information: | |
|---|---|
| Nominal voltage [V]: | 230 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 40 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 4000 |
| Colour temperature [K]: | 4000 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 25000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | E |
| Colour of light: | Neutralny biały |
| Degree of protection (IP): | IP20 |
| Protection class: | I |
| Suitable for suspended mounting: | tak |
| Suitable for built-in mounting: | tak |
| Suitable for surface mounting: | tak |
| Material housing: | Aluminium |
| Colour housing: | Biały |
| Material cover: | Tworzywo sztuczne matowe/satynowe |
| The minimum distance from the illuminated object [m]: | 0.5 |
| Width [mm]: | 595 |
| Height/depth [mm]: | 33 |
| Length [mm]: | 595 |
| Voltage type: | AC |
| Exchangeable control gear: | nie |
